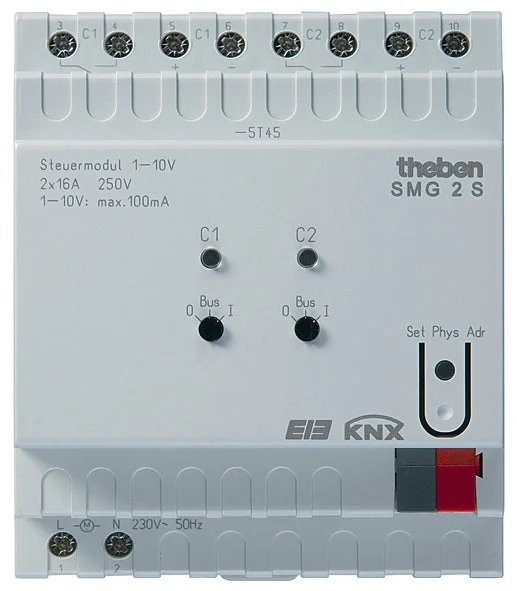

Theben Light Control Unit Bus System – 4910273

Theben lighting control unit bus system, gray, 2 outputs, degree of protection (IP) IP20, width in module units 4, bus connection incl., bus system KNX, energy-saving, interface 1-10 V, manual operation, max. Switching current (ohmic load 16A, max. Switching capacity 2500W.

Specifications

Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
With bus connection : Yes
Substation input : No
Local operation/hand operation : Yes
With LED indication : Yes
Interface 1-10 V : Yes
Number of inputs for light sensor : 0
Max. switching current (resistive load) (A) : 16
Max. switching power (W) : 2500
Number of outputs : 2
Max. control current (mA) : 100
Degree of protection (IP) : IP20
