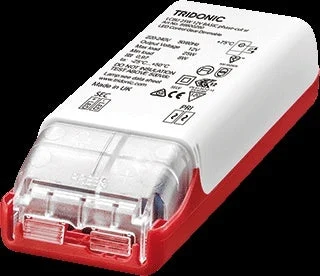

Tridonic LED driver – 89800307

Tridonic led driver dynamic, output voltage 16 – 35V, output power 11.2 – 25W, output current 700mA, dimmable phase cut, dimmable phase cut, suitable for constant current, housing plastic housing, degree of protection (IP) IP20.

Specifications

Model : Dynamic
Suitable for outdoor use : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : Yes
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
Constant light output (CLO) : No
No dim function : No
Housing : Plastic housing
Suitable for constant current : Yes
Suitable for constant voltage : No
Output voltage (V) : 16 V to 35 V
Output current (mA) : 700 mA to 700 mA
Suitable for DC-voltage (primary side) : No
Output power (W) : 11.2 W to 25 W
Degree of protection (IP) : IP20
Protection class : II
Length (mm) : 145
Width (mm) : 51
Height (mm) : 29.5
Diameter size (mm) : 58.67
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
