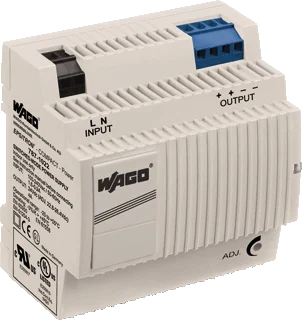

Wago DC Power Supply 24V | 787-1022

Wago DC power supply unit, (wxdxh), 90x89x59mm. 1st Secondary voltage 22.8V – 26.4V. Voltage type supply voltage AC/DC. Nominal supply voltage AC 50 Hz 85- 164V.

Specifications

Voltage type of supply voltage : AC/DC
1st secondary output voltage at DC (V) : 22.8 V to 26.4 V
Max. output current 1 (A) : 4
Secondary voltage adjustable : Yes
Nominal value output voltage 1 (V) : 24
Nominal value output current 1 (A) : 4
Rated voltage AC (V) : 85 V to 164 V
Rated voltage (AC 60 Hz) (V) : 85 V to 264 V
Rated voltage DC (V) : 120 V to 373 V
Electrical connection : Spring clamp connection
Output voltage stabilized : Yes
Stabilized : Yes
Short-circuit-proof : Yes
Degree of protection (IP) : IP20
Suitable for safety functions : No
Refurbished : No
Modular version : No
Direct mounting possible : No
Wall mounting possible : No
Rail mounting possible : Yes
Built-in height (mm) : 59
Width in number of modular spacings : 5
