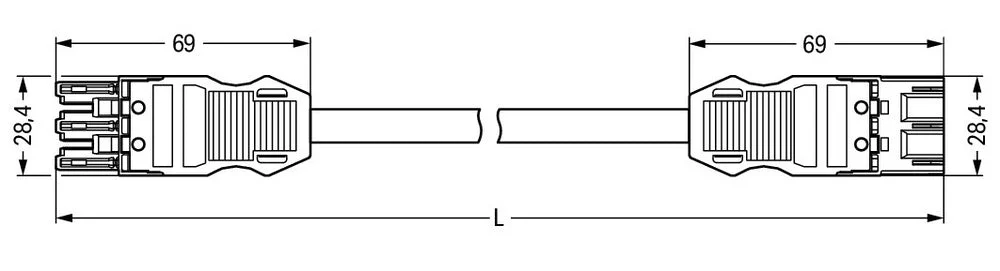

Wago Winsta Midi 771 patch cable inst.bare buildinginstall., version side 1 mating plug (female), version side 2 plug, type made-up cable connection cable, total length 2000mm, sheath black, nominal conductor cross-section 2.5mm², coding/contact insert black, pole marking L. N. PE.
Specifications
Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : IP20
Type of finished cable : Connecting cable
Type side 1 : Bus
Type side 2 : Plug
Conductor end treatment : Ultrasonic compressed wire ends
Total length (mm) : 2000
Mechanical coding : Yes
Color coding/contact insert : Black
Color housing : Black
Cable type : H05VV-F
Cable diameter (mm) : 9.2 mm to 11.4 mm
Color outer sheath : Black
Pole codification : L, N, PE
Nominal cross section conductor (mm²) : 2.5
Locking mechanism : Separate
Insulating piece permanent temperature-resistant (°C) : 105
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 85
Halogen free : No
Fire load (kWh) : 16.462
Surface treatment contacts : Tinned
Pollution degree : 3
Continuity resistor (mOhm) : 1
Rated surge voltage (kV) : 4
Reaction-to-fire class according to EN 13501-6 : Eca
