Wago Winsta Midi Patch Cord Adjustable Building Installation – 771-9995/007-801

Winsta midi. Pre-assembled interconnecting cable, eca, socket/plug, 5-pole, cod. A, h05vv-f 5g 2.5 mm², 8 m, 2,50 mm², black.

Specifications

Rated voltage (V) : 400
Rated current (A) : 16
Number of poles : 5
Degree of protection (IP) : IP20
Type of finished cable : Other
Type side 1 : Bus
Type side 2 : Plug
Conductor end treatment : Ultrasonic compressed wire ends

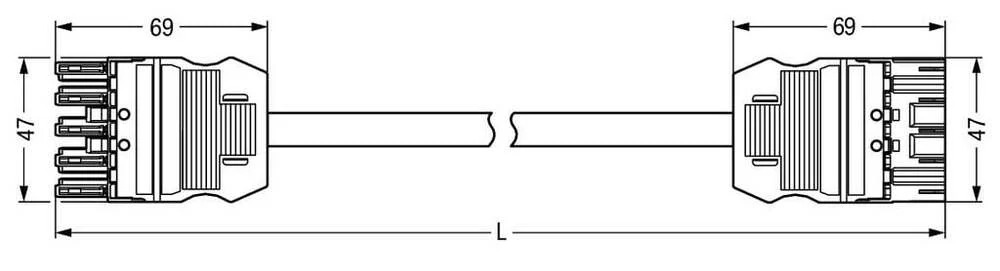

Total length (mm) : 8000
Mechanical coding : Yes
Color coding/contact insert : Black
Color housing : Black
Cable type : H05VV-F
Cable diameter (mm) : 11.2 mm to 13.9 mm
Color outer sheath : Black
Pole codification : 3, N, PE, 2, 1
Nominal cross section conductor (mm²) : 2.5
Locking mechanism : Separate
Insulating piece permanent temperature-resistant (°C) : 105
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 75
Halogen free : No
Surface treatment contacts : Other
Pollution degree : 3
Continuity resistor (mOhm) : 3
Rated surge voltage (kV) : 6
