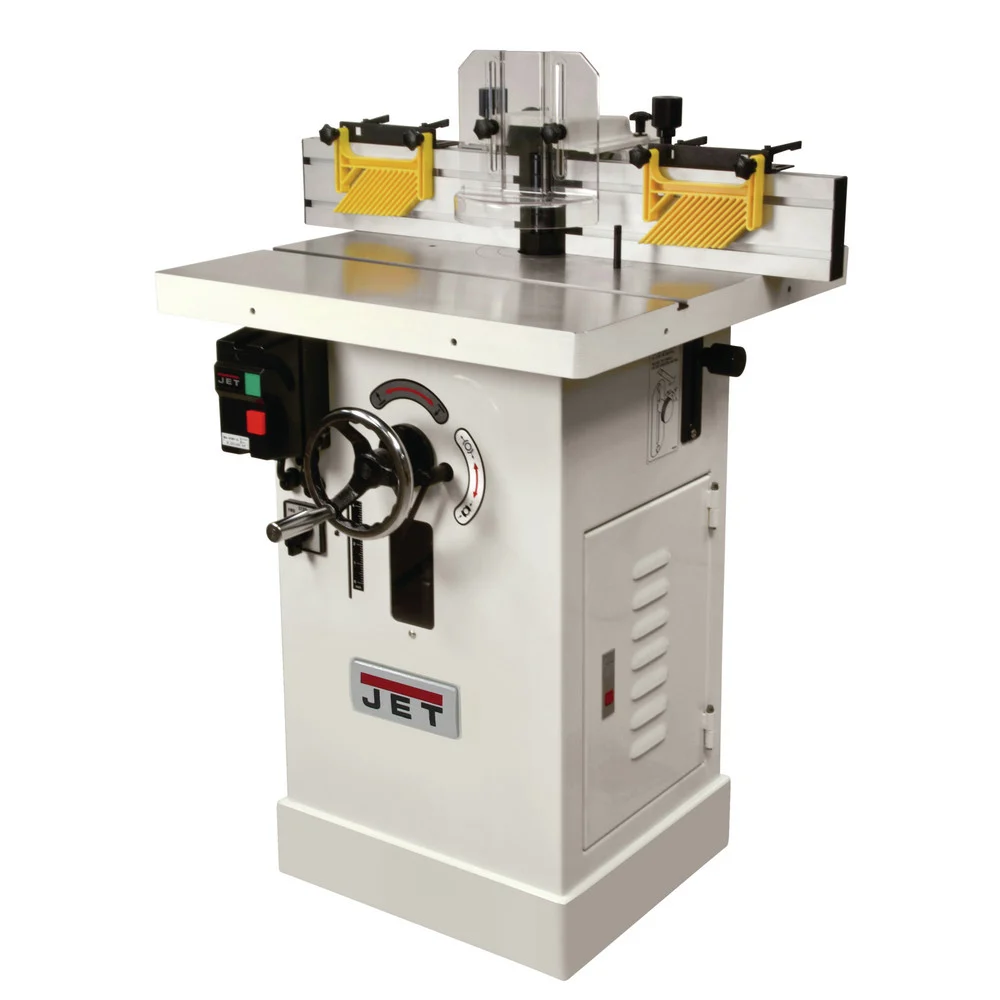

JET JWS-25X 3 HP 1-Phase JET Shaper – JT9-708309

Product Features & specs :

JET JWS-25X 3 HP 1-Phase JET Shaper

Details

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25 in. x 25-1/2 in. precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4 in. dust port.

Features:

• Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments

• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs

• Reversible spindle speeds for diverse shaping jobs

• Spindle lock for safe and easy cutter set up

• Starting Pins for irregular shaping

• Two-speeds let you select the best speed and torque for different cutter diameters

• V-belt transfers maximum power to the spindle.

What’s Included:

• 3 HP 1-Phase JET Shaper – 708309

Power Source

Corded

Fence Length

14-1/2 in

PreWired Voltage

230V

Amperage

16

UL Safety

No

Spindle Diameter

1/2 in / 3/4 in

Opening Diameter (Insert)

2-9/16 in / 4-21/64 in

CSA Safety

No

Wifi compatibility

No

Fence Height

4-3/4 in

Opening Diameter (Table)

6-9/32 in

Dust Port Size

4 in

Table Dimensions

25-1/2 x 25 in

Bluetooth Compatibility

No

Max. Spindle Speed (RPM)

10000

Motor Phase

1

Table Height

33 in

Horsepower

3

Voltage

230V

Motor Type

Brushed

Spindle Travel

3-1/2 in

Min. Spindle Speed (RPM)

7500

ETL Safety

No

Length

25 in.

Width

23 in.

Height

43 in.

Weight

381 lbs.

Warranty Term

5 Year
