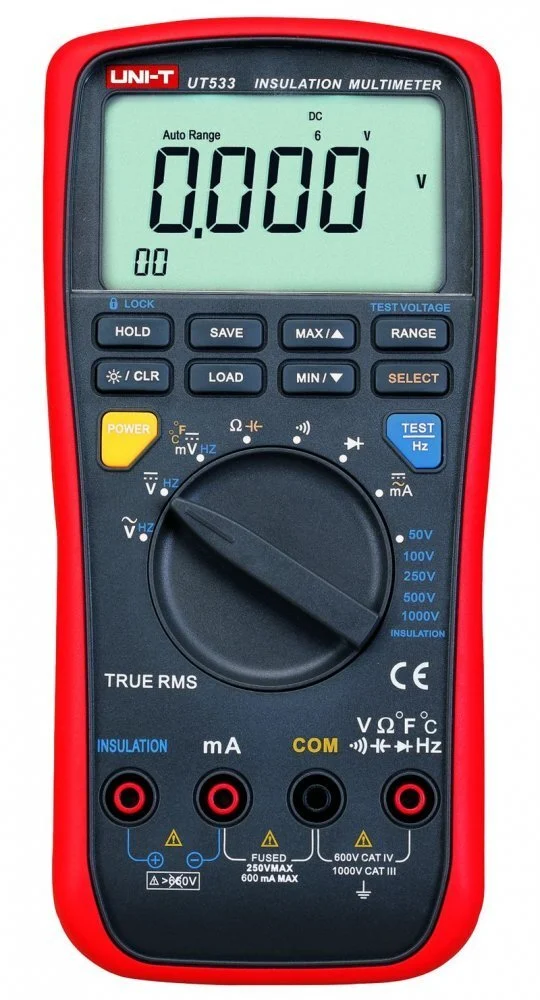

UNI-T UT533 Multimeter

Insulation resistance, voltage, current, resistances, capacitance, frequency, and temperature can be measured with the rugged and compact UT533. 6000 counts on the display of the multimeter allows it to display large resistances. Aside from this, the UT533 has features such as true RMS and max-min mode. In addition, the UT533 can measure insulation resistance up to 2 GΩ for 50 V, 100 V, 250 V, 500 V and 1000 V. A true-RMS calculation is used for AC voltages. 99 data points can be stored in the multimeter.

The UT533 comes with a test lead, English user manual, alligator clip, batteries, carrying bag, and a point contact temperature probe.

Pros:

• True-RMS can measure sinusoidal and non-sinusoidal AC waveforms.
• Can measure isolation resistance

Specifications

Indication : Digital
Our choice for : Multimeter with isolation measurement
Measuring range selection : Automatic
Max. voltage measuring range, AC (V) : 1000
Max. voltage measuring range, DC (V) : 1000
Max. current measuring range, AC (A) : 0.6
Max. current measuring range, DC (A) : 0.6
Max. resistance measuring range (MOhm) : 40
Max. temperature measuring range (°C) : 537
Capacitance measurement : Yes
Max. capacitance measuring range (µF) : 100
Frequency measurement : Yes
Max. frequency measuring range (kHz) : 1000
Max. voltage measuring circuit category (V) : 1000
Nominal test voltage 10 V : No
Nominal test voltage 50 V : Yes
Nominal test voltage 100 V : Yes
Nominal test voltage 250 V : Yes
Nominal test voltage 500 V : Yes
Nominal test voltage 1000 V : Yes
Continuity test : Yes
Temperature measurement : Yes
Temperature measurement RTD : No
Temperature measurement TC : No
Data hold : Yes
Max. value storage : Yes
Min. value storage : Yes
Multiple display : No
Resistance test/diode test : Yes
Scaling bar graph lineair : No
Scaling bar graph logarithmic : No
True RMS measurement : Yes
With display backlight : Yes
Duty cycle measurements : No
Measured value memory : Yes
Interface : No
Bluetooth interface : No
Measuring circuit category : CAT III
Isolation resistance measuring range (MOhm) : 0.1 MOhm to 2000 MOhm
Milliohm measurement with 4 wire technique (Kelvin connection) : No
